Brim (Zui)
What is Brim?
Brim is an open-source desktop application that processes pcap files and logs files, with a primary focus on providing search and analytics. It uses the Zeek log processing format. It also supports Zeek signatures and Suricata Rules for detection.
It can handle two types of data as an input;
Packet Capture Files: Pcap files created with tcpdump, tshark and Wireshark like applications.
Log Files: Structured log files like Zeek logs.
Brim is built on open-source platforms:
Zeek: Log generating engine.
Zed Language: Log querying language that allows performing keywoırd searches with filters and pipelines.
ZNG Data Format: Data storage format that supports saving data streams.
Electron and React: Cross-platform UI.
Why Brim?
Ever had to investigate a big pcap file? Pcap files bigger than one gigabyte are cumbersome for Wireshark. Processing big pcaps with tcpdump and Zeek is efficient but requires time and effort. Brim reduces the time and effort spent processing pcap files and investigating the log files by providing a simple and powerful GUI application.
Brim vs Wireshark vs Zeek
While each of them is powerful and useful, it is good to know the strengths and weaknesses of each tool and which one to use for the best outcome. As a traffic capture analyzer, some overlapping functionalities exist, but each one has a unique value for different situations.
The common best practice is handling medium-sized pcaps with Wireshark, creating logs and correlating events with Zeek, and processing multiple logs in Brim.
Brim
Wireshark
Zeek
Purpose
Pcap processing; event/stream and log investigation.
Traffic sniffing. Pcap processing; packet and stream investigation.
Pcap processing; event/stream and log investigation.
GUI
✔
✔
✖
Sniffing
✖
✔
✔
Pcap processing
✔
✔
✔
Log processing
✔
✖
✔
Packet decoding
✖
✔
✔
Filtering
✔
✔
✔
Scripting
✖
✖
✔
Signature Support
✔
✖
✔
Statistics
✔
✔
✔
File Extraction
✖
✔
✔
Handling pcaps over 1GB
Medium performance
Low performance
Good performance
Ease of Management
4/5
4/5
3/5
Landing Page
Once you open the application, the landing page loads up. The landing page has three sections and a file importing window. It also provides quick info on supported file formats.
Pools: Data resources investigated pcap and log files.
Queries: List of available queries.
History: List of launched queries.
Pools and Log Details
Pools represent the imported files. Once you load a pcap, Brim processes the file and creates Zeek logs, correlates them, and displays all available findings in a timeline, as shown in the image below.
The timeline provides information about capture start and end dates. Brim also provides information fields. You can hover over fields to have more details on the field. The above image shows a user hovering over the Zeek's conn.log file and uid value. This information will help you in creating custom queries. The rest of the log details are shown in the right pane and provides details of the log file fields. Note that you can always export the results by using the export function located near the timeline.

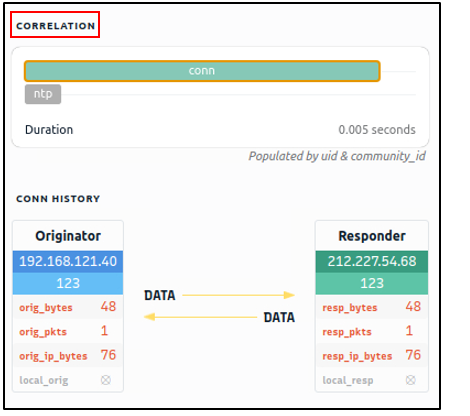

You can correlate each log entry by reviewing the correlation section at the log details pane (shown on the left image). This section provides information on the source and destination addresses, duration and associated log files. This quick information helps you answer the "Where to look next?" question and find the event of interest and linked evidence.
You can also right-click on each field to filter and accomplish a list of tasks.
Filtering values
Counting fields
Sorting (A-Z and Z-A)
Viewing details
Performing whois lookup on IP address
Viewing the associated packets in Wireshark
Default Queries
We mentioned that Brim had 12 premade queries in the previous task. Let's see them in action! Now, open Brim, import the sample pcap and go through the walkthrough.

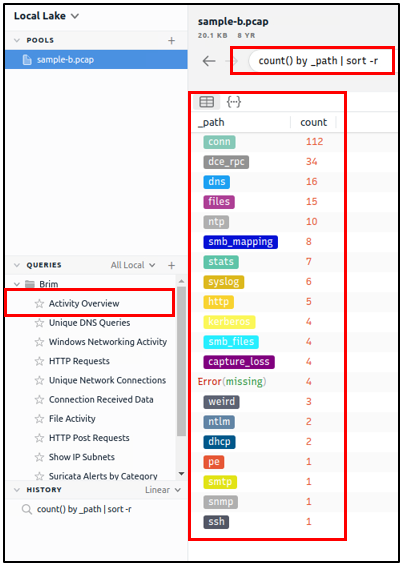

Reviewing Overall Activity
This query provides general information on the pcap file. The provided information is valuable for accomplishing further investigation and creating custom queries. It is impossible to create advanced or case-specific queries without knowing the available log files.
The image on the left shows that there are 20 logs generated for the provided pcap file.
Windows Specific Networking Activity
This query focuses on Windows networking activity and details the source and destination addresses and named pipe, endpoint and operation detection. The provided information helps investigate and understand specific Windows events like SMB enumeration, logins and service exploiting.
Unique Network Connections and Transferred Data
These two queries provide information on unique connections and connection-data correlation. The provided info helps analysts detect weird and malicious connections and suspicious and beaconing activities. The uniq list provides a clear list of unique connections that help identify anomalies. The data list summarises the data transfer rate that supports the anomaly investigation hypothesis.
DNS and HTTP Methods
These queries provide the list of the DNS queries and HTTP methods. The provided information helps analysts to detect anomalous DNS and HTTP traffic. You can also narrow the search by viewing the "HTTP POST" requests with the available query and modifying it to view the "HTTP GET" methods.
File Activity
This query provides the list of the available files. It helps analysts to detect possible data leakage attempts and suspicious file activity. The query provides info on the detected file MIME and file name and hash values (MD5, SHA1).

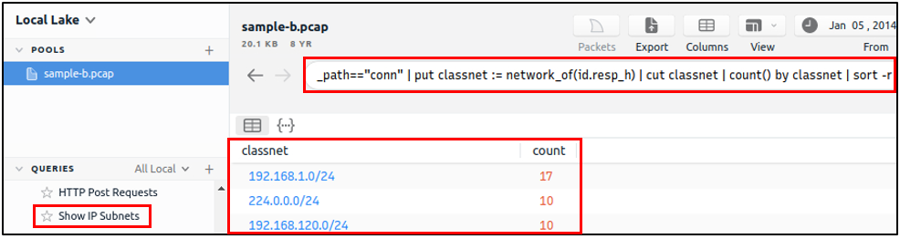

IP Subnet Statistics
This query provides the list of the available IP subnets. It helps analysts detect possible communications outside the scope and identify out of ordinary IP addresses.
Suricata Alerts
These queries provide information based on Suricata rule results. Three different queries are available to view the available logs in different formats (category-based, source and destination-based, and subnet based).
Note: Suricata is an open-source threat detection engine that can act as a rule-based Intrusion Detection and Prevention System. It is developed by the Open Information Security Foundation (OISF). Suricata works and detects anomalies in a similar way to Snort and can use the same signatures.
Custom Queries and Use Cases
There are a variety of use case examples in traffic analysis. For a security analyst, it is vital to know the common patterns and indicators of anomaly or malicious traffic. In this task, we will cover some of them. Let's review the basics of the Brim queries before focusing on the custom and advanced ones.
Brim Query Reference
Basic search
You can search any string and numeric value.
Find logs containing an IP address or any value.10.0.0.1
Logical operators
Or, And, Not.
Find logs contain three digits of an IP AND NTP keyword.192 and NTP
Filter values
"field name" == "value"
Filter source IP.id.orig_h==192.168.121.40
List specific log file contents
_path=="log name"
List the contents of the conn log file._path=="conn"
Count field values
count () by "field"
Count the number of the available log files.count () by _path
Sort findings
sort
Count the number of the available log files and sort recursively.count () by _path | sort -r
Cut specific field from a log file
_path=="conn" | cut "field name"
Cut the source IP, destination port and destination IP addresses from the conn log file._path=="conn" | cut id.orig_h, id.resp_p, id.resp_h
List unique values
uniq
Show the unique network connections.
_path=="conn" | cut id.orig_h, id.resp_p, id.resp_h | sort | uniq
Note: It is highly suggested to use field names and filtering options and not rely on the blind/irregular search function. Brim provides great indexing of log sources, but it is not performing well in irregular search queries. The best practice is always to use the field filters to search for the event of interest.
Communicated Hosts
Identifying the list of communicated hosts is the first step of the investigation. Security analysts need to know which hosts are actively communicating on the network to detect any suspicious and abnormal activity in the first place. This approach will help analysts to detect possible access violations, exploitation attempts and malware infections.
Query: _path=="conn" | cut id.orig_h, id.resp_h | sort | uniq
Frequently Communicated Hosts
After having the list of communicated hosts, it is important to identify which hosts communicate with each other most frequently. This will help security analysts to detect possible data exfiltration, exploitation and backdooring activities.
Query: _path=="conn" | cut id.orig_h, id.resp_h | sort | uniq -c | sort -r
Most Active Ports
Suspicious activities are not always detectable in the first place. Attackers use multiple ways of hiding and bypassing methods to avoid detection. However, since the data is evidence, it is impossible to hide the packet traces. Investigating the most active ports will help analysts to detect silent and well-hidden anomalies by focusing on the data bus and used services.
Query: _path=="conn" | cut id.resp_p, service | sort | uniq -c | sort -r count
Query: _path=="conn" | cut id.orig_h, id.resp_h, id.resp_p, service | sort id.resp_p | uniq -c | sort -r
Long Connections
For security analysts, the long connections could be the first anomaly indicator. If the client is not designed to serve a continuous service, investigating the connection duration between two IP addresses can reveal possible anomalies like backdoors.
Query: _path=="conn" | cut id.orig_h, id.resp_p, id.resp_h, duration | sort -r duration
Transferred Data
Another essential point is calculating the transferred data size. If the client is not designed to serve and receive files and act as a file server, it is important to investigate the total bytes for each connection. Thus, analysts can distinguish possible data exfiltration or suspicious file actions like malware downloading and spreading.
Query: _path=="conn" | put total_bytes := orig_bytes + resp_bytes | sort -r total_bytes | cut uid, id, orig_bytes, resp_bytes, total_bytes
DNS and HTTP Queries
Identifying suspicious and out of ordinary domain connections and requests is another significant point for a security analyst. Abnormal connections can help detect C2 communications and possible compromised/infected hosts. Identifying the suspicious DNS queries and HTTP requests help security analysts to detect malware C2 channels and support the investigation hypothesis.
Query: _path=="dns" | count () by query | sort -r
Query: _path=="http" | count () by uri | sort -r
Suspicious Hostnames
Identifying suspicious and out of ordinary hostnames helps analysts to detect rogue hosts. Investigating the DHCP logs provides the hostname and domain information.
Query: _path=="dhcp" | cut host_name, domain
Suspicious IP Addresses
For security analysts, identifying suspicious and out of ordinary IP addresses is essential as identifying weird domain addresses. Since the connection logs are stored in one single log file (conn), filtering IP addresses is more manageable and provides more reliable results.
Query: _path=="conn" | put classnet := network_of(id.resp_h) | cut classnet | count() by classnet | sort -r
Detect Files
Investigating transferred files is another important point of traffic investigation. Performing this hunt will help security analysts to detect the transfer of malware or infected files by correlating the hash values. This act is also valuable for detecting transferring of sensitive files.
Query: filename!=null
SMB Activity
Another significant point is investigating the SMB activity. This will help analysts to detect possible malicious activities like exploitation, lateral movement and malicious file sharing. When running an investigation, it is suggested to ask, "What is going on in SMB?".
Query: _path=="dce_rpc" OR _path=="smb_mapping" OR _path=="smb_files"
Known Patterns
Known patterns represent alerts generated by security solutions. These alerts are generated against the common attack/threat/malware patterns and known by endpoint security products, firewalls and IDS/IPS solutions. This data source highly relies on available signatures, attacks and anomaly patterns. Investigating available log sources containing alerts is vital for a security analyst.
Brim supports the Zeek and Suricata logs, so any anomaly detected by these products will create a log file. Investigating these log files can provide a clue where the analyst should focus.
Query: event_type=="alert" or _path=="notice" or _path=="signatures"
Threat Hunting with Brim | Malware C2 Detection
It is just another malware campaign spread with CobaltStrike. We know an employee clicks on a link, downloads a file, and then network speed issues and anomalous traffic activity arises. Now, open Brim, import the sample pcap and go through the walkthrough.
Let's investigate the traffic sample to detect malicious C2 activities!
Let's look at the available logfiles first to see what kind of data artefact we could have. The image on the left shows that we have many alternative log files we could rely on. Let's review the frequently communicated hosts before starting to investigate individual logs.
Query: cut id.orig_h, id.resp_p, id.resp_h | sort | uniq -c | sort -r count
This query provides sufficient data that helped us decide where to focus. The IP addresses "10.22.xx" and "104.168.xx" draw attention in the first place. Let's look at the port numbers and available services before focusing on the suspicious IP address and narrowing our search.
Query: _path=="conn" | cut id.resp_p, service | sort | uniq -c | sort -r count
Nothing extremely odd in port numbers, but there is a massive DNS record available. Let's have a closer look.

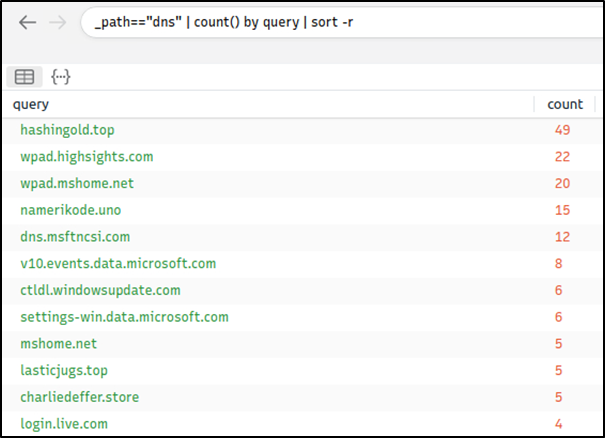

Query: _path=="dns" | count() by query | sort -r
There are out of ordinary DNS queries. Let's enrich our findings by using VirusTotal to identify possible malicious domains.
We have detected two additional malicious IP addresses (we have the IP 45.147.xx from the log files and gathered the 68.138.xx and 185.70.xx from VirusTotal) linked with suspicious DNS queries with the help of external research. Let's look at the HTTP requests before narrowing down our investigation with the found malicious IP addresses.
Query: _path=="http" | cut id.orig_h, id.resp_h, id.resp_p, method, host, uri | uniq -c | sort value.uri
We detect a file download request from the IP address we assumed as malicious. Let's validate this idea with VirusTotal and validate our hypothesis.
VirusTotal results show that the IP address "104.xx" is linked with a file. Once we investigate that file, we discover that these two findings are associated with CobaltStrike. Up to here, we've followed the abnormal activity and found the malicious IP addresses. Our findings represent the C2 communication. Now let's conclude our hunt by gathering the low hanging fruits with Suricata logs.
Query: event_type=="alert" | count() by alert.severity,alert.category | sort count
Now we can see the overall malicious activities detected by Suricata. Note that you can investigate the rest of the IP addresses to identify the secondary C2 traffic anomaly without using the Suricata logs. This task demonstrates two different approaches to detecting anomalies. Investigating each alarm category and signature to enhance the threat hunting activities and post-hunting system hardening operations is suggested. Please note, Adversaries using CobaltStrike are usually skilled threats and don't rely on a single C2 channel. Common experience and use cases recommend digging and keeping the investigation by looking at additional C2 channels.
Threat Hunting with Brim | Crypto Mining
Cryptocurrencies are frequently on the agenda with their constantly rising value and legal aspect. The ability to obtain cryptocurrencies by mining other than purchasing is becoming one of the biggest problems in today's corporate environments. Attackers not only compromise the systems and ask for a ransom, but sometimes they also install mining tools (cryptojacking). Other than the attackers and threat actors, sometimes internal threats and misuse of trust and privileges end up installing coin miners in the corporate environment.
Usually, mining cases are slightly different from traditional compromising activities. Internal attacks don't typically contain major malware samples. However, this doesn't mean they aren't malicious as they are exploiting essential corporate resources like computing power, internet, and electricity. Also, crypto mining activities require third party applications and tool installations which could be vulnerable or create backdoors. Lastly, mining activities are causing network performance and stability problems. Due to these known facts, coin mining is becoming one of the common use cases of threat hunters.
Now, open Brim, import the sample pcap and go through the walkthrough.
Let's investigate a traffic sample to detect a coin mining activity!
Let's look at the available logfiles first to see what kind of data artefact we could have. The image on the left shows that we don't have many alternative log files we could rely on. Let's review the frequently communicated hosts to see if there is an anomaly indicator.
Query: cut id.orig_h, id.resp_p, id.resp_h | sort | uniq -c | sort -r
This query provided sufficient data that helped us decide where to focus. The IP address "192.168.xx" draws attention in the first place. Let's look at the port numbers and available services before focusing on the suspicious IP address and narrowing our search.

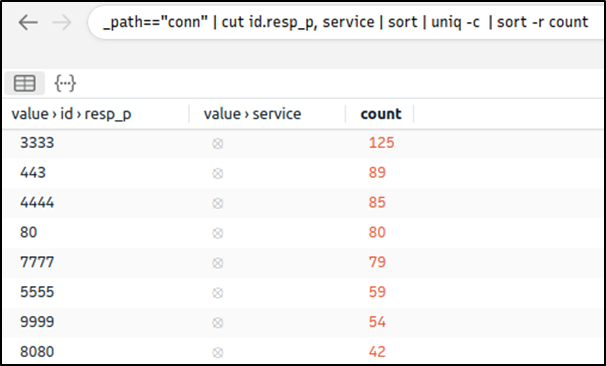

Query: _path=="conn" | cut id.resp_p, service | sort | uniq -c | sort -r count
There is multiple weird port usage, and this is not usual. Now, we are one step closer to the identification of the anomaly. Let's look at the transferred data bytes to support our findings and find more indicators.
Query: _path=="conn" | put total_bytes := orig_bytes + resp_bytes | sort -r total_bytes | cut uid, id, orig_bytes, resp_bytes, total_bytes
The query result proves massive traffic originating from the suspicious IP address. The detected IP address is suspicious. However, we don't have many supportive log files to correlate our findings and detect accompanying activities. At this point, we will hunt the low hanging fruits with the help of Suricata rules. Let's investigate the Suricata logs.

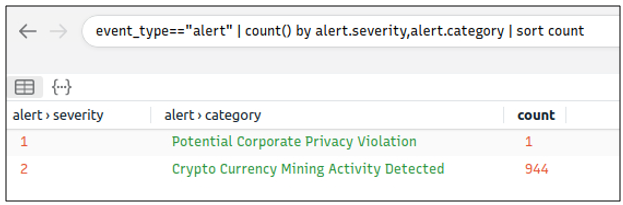

Query: event_type=="alert" | count() by alert.severity,alert.category | sort count
Suricata rules have helped us conclude our hunt quickly, as the alerts tell us we are investigating a "Crypto Currency Mining" activity. Let's dig deeper and discover which data pool is used for the mining activity. First, we will list the associated connection logs with the suspicious IP, and then we will run a VirusTotal search against the destination IP.
Query: _path=="conn" | 192.168.1.100
We investigated the first destination IP address and successfully identified the mining server. In real-life cases, you may need to investigate multiple IP addresses to find the event of interest.
Lastly, let's use Suricata logs to discover mapped out MITRE ATT&CK techniques.
Query: event_type=="alert" | cut alert.category, alert.metadata.mitre_technique_name, alert.metadata.mitre_technique_id, alert.metadata.mitre_tactic_name | sort | uniq -c
Now we can identify the mapped out MITRE ATT&CK details as shown in the table below.
Suricata Category
MITRE Technique Name
MITRE Technique Id
MITRE Tactic Name
Crypto Currency Mining
Resource_Hijacking
T1496
Impact
